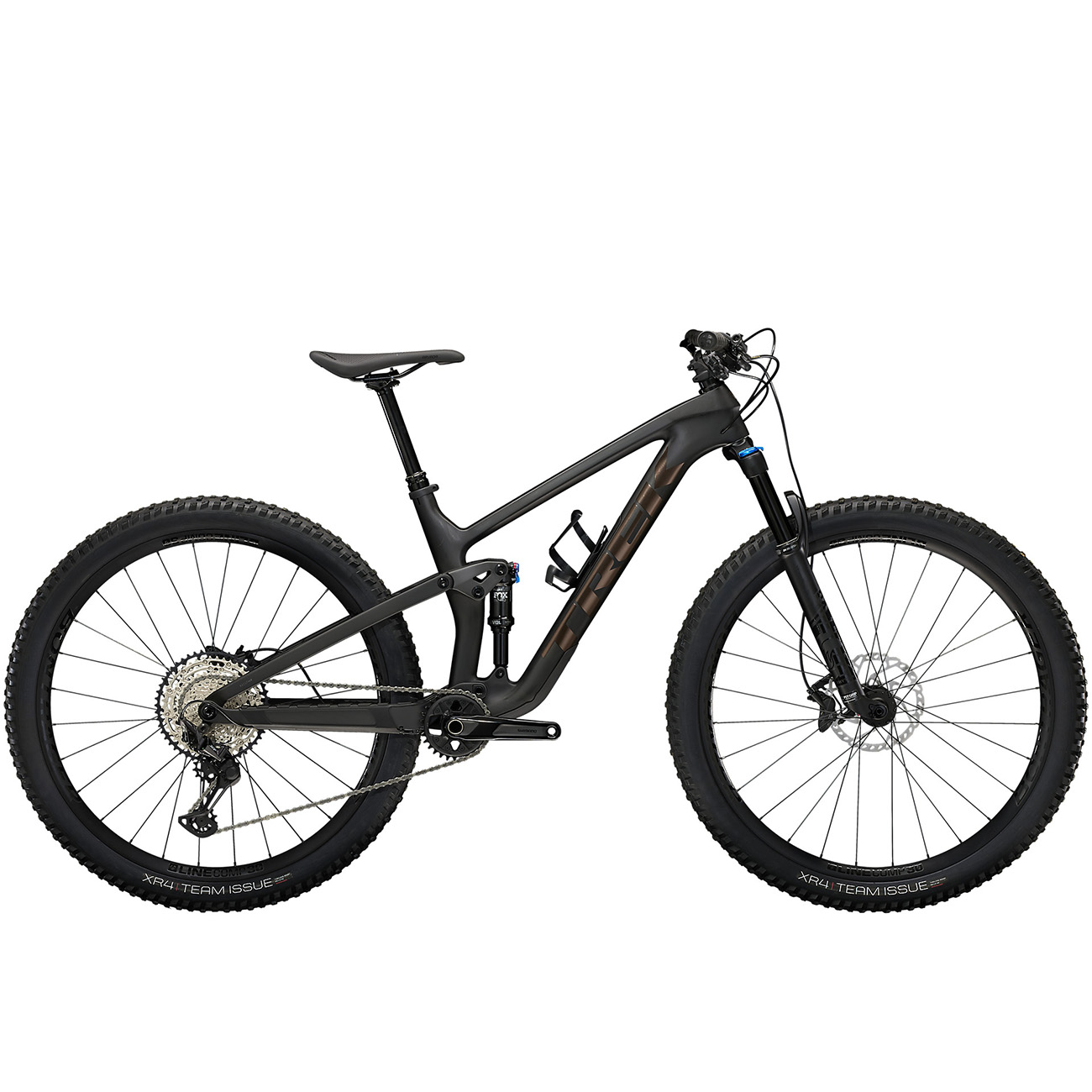

Trek Top Fuel 9.8 XT



  • OCLV Mountain Carbon frame
  • RockShox SID Select+ with 120mm travel
  • RockShox Deluxe Ulitmate RCT, 185mm x 50mm
  • 1×12 Shimano XT drivetrain
  • Wide carbon Bontrager Line Elite 30 wheels
  • Bontrager Line Elite Dropper
  • Shimano SLX brakes.

Must come to store for delivery.

Top Fuel 9.8 is a high-performance full suspension mountain bike for endurance racers and riders who don’t settle for one style of riding. It combines the best qualities of XC and trail bikes for an unbelievably fun, efficient, and capable rig. It’s fast on flow, shreds big singletrack, and conquers endurance events. The 9.8 is built with an OCLV Mountain Carbon frame and across-the-board parts upgrades, including a 120mm FOX Performance 34 Step-Cast fork, Shimano XT drivetrain, and carbon wheels and bars.

Trek’s Top Fuel is a full suspension XC mountain bike that’s equally suited to racing and having an all-around great time on any trail. It’s fast, fun, and always up for an adventure. Rides XC. And the stuff that scares XC riders.

The Top Fuel is the perfect trail bike for South Florida, but it’s also a great option for out of the area trail adventures. With 120mm front travel, South Florida’s cross country, technical, and flowy terrain are a playground for the Top Fuel. The dropper seat post gives you the flexibility to put your body where you need it for steep drops. The Shimano hydraulic disc brakes give you stopping power when you need it most. It’ll be your daily ride at Club Scrub in Jonathan Dickinson State Park all week long. Then, it’ll be your weekender up at Santos in Ocala or Alafia near Tampa.

*Please note, the specific build in store may not be shown as pictured in the provided stock photo.*


Trek Full Suspension MTB Geometry Chart



Bike Colors

Bike Sizes


OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel


RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel


Fox Performance Float, 2-position DPS damper, TwistLoc remote, tuned by Trek Suspension Lab, 190x45mm

Suspension Lever

SRAM TwistLoc dual remote


Front wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Rear wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle

Rear Skewer

Bontrager Switch thru axle, removable lever


Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''


Shimano XT M8100, 12 speed

Rear Derailleur

Shimano XT M8100, long cage


Size: S, M, M/L, L
Shimano XT M8120, 30T, 55mm chainline, 170mm length
Size: XL
Shimano XT M8120, 30T, 55mm chainline, 175mm length


Shimano SM-BB52, 73mm, threaded external bearing


Shimano XT M8100, 10-51, 12 speed


Shimano Ultegra/XT M8100, 12 speed

Max chainring size

36T (oval – 34T) Min: 28T


Bontrager Arvada, austenite rails, 138mm width


Size: S
Size: S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size: M, M/L
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size: L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size: XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length


Size: S
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
Size: M, M/L, L, XL
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width


Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length


Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom


Shimano XT M8120 4-piston hydraulic disc

Brake Rotor

Size: S, M, M/L, L, XL
Shimano RT76, 6-bolt, 160mm
Size: S, M, M/L, L, XL
Shimano RT76, 6-bolt, 180mm

Approx Weight

M – 12.61 kg / 27.81 lbs (with TLR sealant, no tubes)

Weight Limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Frame Material



Wheel Size
